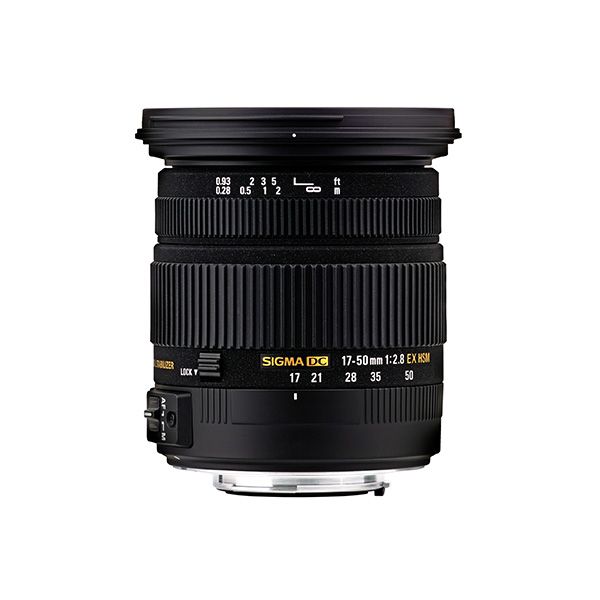

Sigma 17-50mm f/2.8 Ex DC OS HSM Lens for Nikon**
- Lens construction: 17 elements in 13 groups
- Angle of view(DC): 79.7 - 31.7°
- Number of diaphragm blades: 7 Blades (Rounded diaphragm)
- Minimum aperture: F22
- Minimum focusing distance: 28cm / 11in.
EX | ASP | HSM | OS | IF
The Sigma 17-50mm F2.8 EX DC HSM is a useful large-aperture standard zoom lens designed exclusively for APS-C format digital SLRs. Covering a focal range of approximately 25-75mm, the 17-50mm features a HSM ultrasonic-type focus motor. With a minimum focusing distance of 11 inches throughout the entire zoom range this lens offers a useful semi-macro close up capability, for a maximum reproduction ratio of 1:5.
Large aperture standard zoom lens with a minimum focal length of 17mm, designed exclusively for digital SLR cameras incorporating Sigma's original OS (Optical Stabilizer).
Large aperture standard zoom lens with a minimum focal length of 17mm, designed exclusively for digital SLR cameras and incorporating Sigma's original OS (Optical Stabilizer). The OS function offers superior Stabilization. The lens has a compact construction with an overall length of 91.8mm. This compact and lightweight construction makes the lens ideal for travel photography. Two FLD ("F" Low Dispersion) glass elements, two glass mold and one hybrid aspherical lens provide excellent correction for all types of aberrations. This lens has superior peripheral brightness and provides sharp and high contrast images even at the maximum apertures. The incorporation of HSM (Hyper Sonic Motor) provides fast and quiet AF.
* Sony and Pentax mounts are not incorporated with OS function.
* For Pentax mount, if the camera body does not support HSM, auto focus will not be available.
FLD ("F" Low Dispersion) glass elements
Two FLD ("F" Low Dispersion) glass elements, which have the performance equal to fluorite glass, compensate for color aberration. In addition, two glass mold elements and one hybrid aspherical lens give excellent correction for field curvature and astigmatism. High definition images are ensured throughout the entire zoom range.
* LD glass is the highest level low dispersion glass available with extremely high light transmission. This optical glass has a performance equal to fluorite glass which has a low refractive index and low dispersion compared to current optical glass. It also benefits from high anomalous dispersion.
These characteristics give excellent correction for residual chromatic aberration (secondary spectrum) which cannot be corrected by ordinary optical glass and ensures high definition and high contrast images.
Sigma's own unique OS (Optical Stabilizer) technology
The lens is equipped with Sigma's own unique OS (Optical Stabilizer) function. The OS function offers superior stabilization.
* Sony and Pentax mounts are not incorporated with OS function.
Superior peripheral brightness
This lens has superior peripheral brightness and provides sharp and high contrast images even at the maximum apertures
F2.8 Large aperture throughout the entire zoom range
The large aperture provides a bright viewfinder image, helping the photographer confirm accurate focusing. It is also ideal for emphasizing the subject by creating a natural, blurred background and allowing the use of fast shutter speeds.
Covering a wide range of focal lengths from 17mm
This lens covers a wide range of focal lengths from 17mm and has an equivalent angle of view of a 25.5-75mm with a 35mm SLR camera. It is ideal for portraits, landscapes and general photography.
* The angle of view varies depending on which camera the lens is mounted on.
Compact construction
The lens has a compact construction with a diameter of 83.5mm, overall length of 91.8mm and weight of 565g. This compact and lightweight construction makes it ideal for travel photography.
Minimum focusing distance of 28cm, Maximum magnification ratio 1:5
Offering minimum forcusing distance of 28cm throughout the zoom range and maximum magnification of 1:5. Allows close up photography.
Rounded diaphragm
This lens has rounded 7 blade diaphragm which creates an attractive bokeh to the out of focus area of the image.
Inner focusing system
The inner focusing system eliminates front lens ration, making the lens particularly suitable for using the supplied petal-type hood and circular polarizing filters.
Fast and quiet AF
The lens incorporates HSM (Hyper Sonic motor), ensuring fast and quiet AF.
* For Pentax mount, if the camera body does not support HSM, auto focus will not be available.
Sample Photos
![]() |
![]() |
![]() |
![]() |
![]() |
||||
![]() |
![]() |
![]() |
![]() |
![]() |
Performance Data
MTF |
Vignetting |
Distortion |
Datasheets | |
---|---|
Sigma 17-50mm f/2.8 Ex DC OS HSM Lens for Nikon** - Datasheet | Specifications |
Sigma 17-50mm f/2.8 Ex DC OS HSM Lens for Nikon** - Specifications |
What's in the box:
- Sigma 17-50mm F2.8 EX DC HSM OS*
- Pental Type Lens Hood LH825-03
- Font Cap LCF III 77mm
- Rear Cap LCR II
Brand: Sigma |
Code: 4583955
APN: 085126583552 |
Supplier Code: 4583955
Brand: Sigma |
Code: 4583955
APN: 085126583552 |
Supplier Code: 4583955
At a glance
- Lens construction: 17 elements in 13 groups
- Angle of view(DC): 79.7 - 31.7°
- Number of diaphragm blades: 7 Blades (Rounded diaphragm)
- Minimum aperture: F22
- Minimum focusing distance: 28cm / 11in.
